Applications :
- Multicore power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
 |
 |

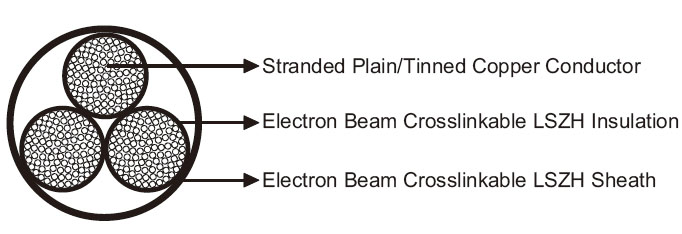

Construction :
- Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulation : Electron beam crosslinkable standard wall LSZH compound.
- Outer Sheath : Electron beam crosslinkable LSZH compound.
Optional :
- FRA-SW-0.75M-OS (Screened)
- FRA-SW-0.75M-FR (Fire resistant)
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 1.0 1.5 2.5 4.0 6.0 10 16 Maximum Conductor Resistance Ω/km 20 13.7 8.21 5.09 3.39 1.95 1.24 Voltage Rating KV 0.45/0.75
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| FRA-SW-0.75M-2G1.5 | 2×1.5 | 30/0.25 | 0.7 | 8.9 | 127 |
| FRA-SW-0.75M-3G1.5 | 3×1.5 | 30/0.25 | 0.7 | 9.6 | 144 |
| FRA-SW-0.75M-4G1.5 | 4×1.5 | 30/0.25 | 0.7 | 10.6 | 177 |
| FRA-SW-0.75M-5G1.5 | 5×1.5 | 30/0.25 | 0.7 | 11.6 | 186 |
| FRA-SW-0.75M-7G1.5 | 7×1.5 | 30/0.25 | 0.7 | 12.5 | 243 |
| FRA-SW-0.75M-13G1.5 | 13×1.5 | 30/0.25 | 0.7 | 17.0 | 411 |
| FRA-SW-0.75M-19G1.5 | 19×1.5 | 30/0.25 | 0.7 | 19.3 | 586 |
| FRA-SW-0.75M-28G1.5 | 28×1.5 | 30/0.25 | 0.7 | 23.6 | 901 |
| FRA-SW-0.75M-37G1.5 | 37×1.5 | 30/0.25 | 0.7 | 26.6 | 1068 |
| FRA-SW-0.75M-2G2.5 | 2×2.5 | 50/0.25 | 0.8 | 10.3 | 166 |
| FRA-SW-0.75M-3G2.5 | 3×2.5 | 50/0.25 | 0.8 | 11.1 | 201 |
| FRA-SW-0.75M-4G2.5 | 4×2.5 | 50/0.25 | 0.8 | 12.3 | 252 |
| FRA-SW-0.75M-5G2.5 | 5×2.5 | 50/0.25 | 0.8 | 13.4 | 282 |
| FRA-SW-0.75M-7G2.5 | 7×2.5 | 50/0.25 | 0.8 | 14.6 | 345 |
| FRA-SW-0.75M-13G2.5 | 13×2.5 | 50/0.25 | 0.8 | 20.0 | 616 |
| FRA-SW-0.75M-19G2.5 | 19×2.5 | 50/0.25 | 0.8 | 22.8 | 806 |
| FRA-SW-0.75M-28G2.5 | 28×2.5 | 50/0.25 | 0.8 | 28.2 | 1236 |
| FRA-SW-0.75M-37G2.5 | 37×2.5 | 50/0.25 | 0.8 | 31.7 | 1650 |
 |
 |
 |
 |
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
